JRL manufactures two products from different combinations of the same resources.

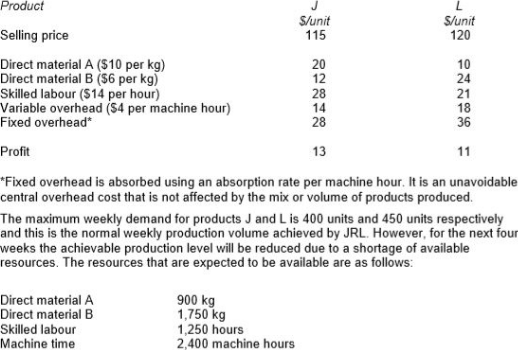

Unit selling prices and unit cost details for each product are as follows:

Identify, using graphical linear programming, the weekly production schedule for products J and L that will maximize the profits of JRL during the next four weeks.
A. The solution from the graph is to produce 330 units of J and 280 units of
B. (A simplex solution shows the true optimum to be 332.333 units of J and 283.333 units of
C. )
D. The solution from the graph is to produce 310 units of J and 280 units of
E. (A simplex solution shows the true optimum to be 308.333 units of J and 283.333 units of
F. )
G. The solution from the graph is to produce 330 units of J and 290 units of
H. (A simplex solution shows the true optimum to be 332.333 units of J and 293.333 units of
I. )
J. The solution from the graph is to produce 315 units of J and 290 units of
K. (A simplex solution shows the true optimum to be 316.333 units of J and 293.333 units of
L. )
M. The solution from the graph is to produce 312 units of J and 295 units of
N. (A simplex solution shows the true optimum to be 312.333 units of J and 294.999 units of
O. )
P. The solution from the graph is to produce 317 units of J and 270 units of
Q. (A simplex solution shows the true optimum to be 316.666 units of J and 269.666 units of
R. )
Explanation:
Reference: https://www.vrelearnonline.com/cima-p1-103-27/
