下記はCisco 300-135試験問題集は実際の試験問題のバージョンの一部です。 CCNP 300-135問題集 は実際の試験問題バージョンには72問になります。すべての実際の試験問題は、勉強者が最初の試みで成功することを保証できます。300-135問題集の実際の試験問題でCisco試験に不合格になった場合、全額で支払い手数料の払い戻しを受けられます。実際の試験問題をトレーニングしたいでしょうか？ では、トレーニングしましょう！

 300-135フルバージョンを入手

問題#1

Fault Condition is related to which technology?

A. BGP
B. NTP
C. IP NAT
D. IPv4 OSPF Routing
E. IPv4 OSPF Redistribution
F. IPv6 OSPF Routing
G. IPv4 layer 3 security

Explanation:
The problem in this situation is with OSPF on router 1. It is missing the "ip ospf authentication messagedigest" command on the Serial0/0/0/0.12 interface. The problem statement tells us that the two routers are not able to become OSPF neighbors.

問題#2

Ticket 1 OSPF Authentication

TROUBLE TICKET STATEMENT:
“The implementation group has been using the test bed to do a ‘proof-of-concept’ that required both client 1 and client 2 to access the Web Server at 209.65.200. 241. After several changed to interface status, network addressing, routing schemes and layer 2 connectivity, at trouble ticket has been opened indicating that client 1 cannot ping the 209.65.200.241 (internet Server)”
The following information needs yourself show run:
Configuration of R1:
interface Serial0/0/0
description Link to R2
ip address 10.1.1.1 255.255.255.252
ip nat inside
encapsulation frame-relay
ip ospf message-digest-key 1 md5 TSHOOT
ip ospf network point-to-point
!
router ospf 1
router-id 1.1.1.1
log-adjacency-changes
network 10.1.2.0 0.0.0.255 area 12
network 10.1.10.0 0.0.0.255 area 12
default-information originate always
!
Configuration of R2:
interface Serial0/0/0.12 point-to-point
ip address 10.1.1.2 255.255.255.252
ip ospf authentication message-digest
ip ospf message-digest-key 1 md5 TSHOOT
!

On which device is the fault condition located?

A. R1
B. R2
C. R3
D. R4
E. DSW1
F. DSW2
G. ASW1
H. ASW2

Explanation:
As you will see, the problem in this situation is with OSPF on R1. It is missing the "ip ospf authentication message-digest" command on the Serial0/0/0/0.12 interface.

問題#3

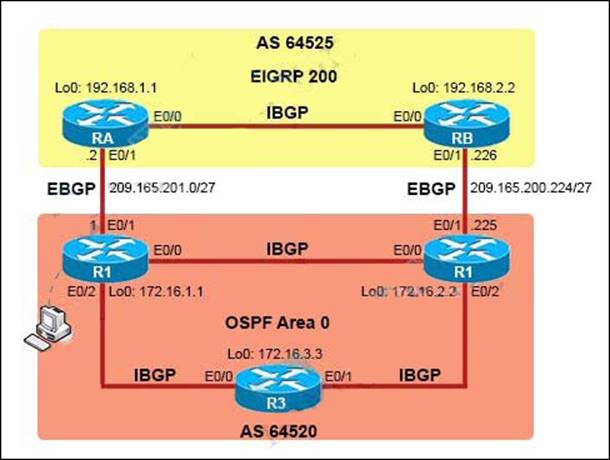

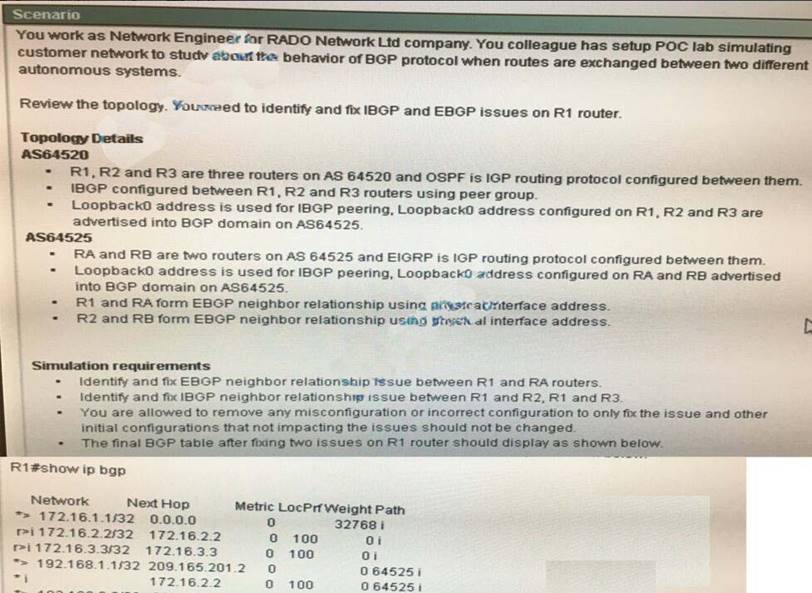

BGP sim





A. R1 configuration
Router>enable
Router#show running-config
show run on R1 can see the following configuration
―-output omitted―-
router bgp 64520
network 172.16.1.1 mask 255.255.255.255
neighbor IBGP peer-group
neighbor IBGP remote-as 64550 ----wrong AS
neighbor IBGP update-source loopback0
neighbor 172.16.2.2 peer-group IBGP
neighbor 172.16.3.3 peer-group IBGP
neighbor 209.165.200.2 remote-as 64525 ------ wrong IP
―-output omitted―-
Problem solving steps:
Router#configure terminal
Router(config)#router bgp 64520
The wrong AS command should not be deleted. Directly configure the correct cover the error, IBGP capitalizes.
Router(config-router)#neighbor IBGP remote-as 64520
Router(config-router)#no neighbor 209.165.200.2 remote-as 64525
Router(config-router)#neighbor 209.165.201.2 remote-as 64525
Router(config-router)#end
Router#copy run start

問題#4

Examine the configuration on R5.
Router R5 do not see any route entries learned from R4; what could be the issue?

A. HSRP issue between R5 and R4
B. There is an OSPF issue between R5and R4
C. There is a DHCP issue between R5 and R4
D. The distribute-list configured on R5 is blocking route entries
E. The ACL configured on R5 is blocking traffic for the subnets advertised from R4.

Explanation:
R5 configuration: ­
int gig0/0
ip address dhcp
This interface not getting dhcp ip address from R4. So even though OSPF configuration was like 0.0.0.0 0.0.0.0 area 0, because this interface does not get correct ip address from DHCP it can’t participate in OSPF.
R4 configuration: ­
ip dhcp exlude address
ip dhcp pool ine
network x.x.x.x x.x.x.x
i think default router command was missing here. not sure but
Int gig0/0
ip address dhcp.
This interface on R4 should have ip address configured on it instead of” ip address dhcp”. Hence its not able to provide dhcp lease address to R5.
R4 also had ospf configured as network 0.0.0.0 0.0.0.0 area 0. So all interface can participate if they are
up and if they have ip address.
But because R5 interface connected to R4 could not obtail correct dhcp ip address from R4 due to DHCP issue they wont form ospf neighborship.
So correct answer is DHCP issue between R5 & R4.

問題#5

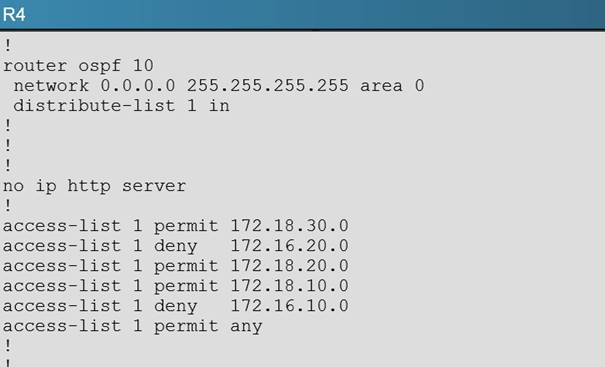

Examine the configuration on R4. The routing table shows no entries for 172.16.10.0/24 and 172.16.20.0/24.
Identify which of the following is the issue preventing route entries being installed on R4 routing table?

A. HSRP issue between R4 and R2
B. This is an OSPF issue between R4 and R2
C. This is a DHCP issue between R4 and R2
D. The distribute-list configured on R4 is blocking route entries
E. The ACL configured on R4 is blocking inbound traffic on the interface connected to R2

Explanation:
If we look at the configuration on R4 we see that there is a distribute list applied to OSPF, which blocks the 172.16.20.0/24 and 172.16.10.0/24 networks.
